Description

53 Gallon Stainless 4 Inch Diameter Mile Hi Flute 6 Sections

This unit has a lead time of 2-4 weeks from date of order.

Please contact us directly at 303-987-3955 if shipping rates do not appear. These units will ship freight and additional shipping information is required from the recipient to calculate shipping. Please advise that additional rates may apply if shipping to residential addresses and locations where liftgate assistance is required.

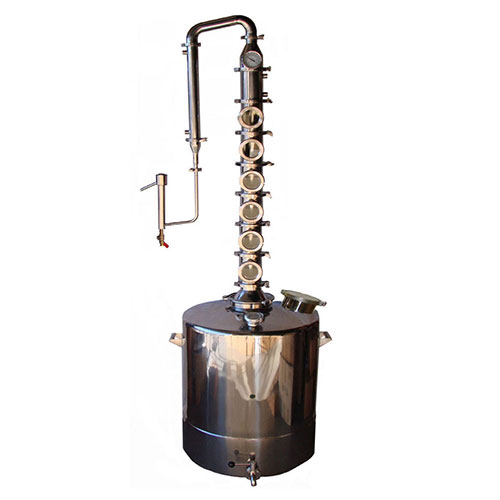

53 Gallon Stainless 4 Inch Diameter Mile Hi Flute 6 Sections Stainless Stainless Still with a 4″ diameter stainless column and 3″ Sight glass allows you to see all the action. This column includes 6 stainless sections with copper perforated plates and down comers for each section. This completely modular still allows you to run 3,5,8 sections to give you as much or as little reflux as you desire. Complete with shotgun condenser, dephlegmator, and a parrot to see proof and percentage of alcohol real time throughout the run.

The sectional design allows the distiller to remove copper plates and run as a stripping still or a pot still to carry over flavor. Or add all plates and more sections to run high percentage 190 proof for vodkas. You can easily add a 360 degree sight glass with screened gasket to be used as a gin basket or an infusion chamber. Infuse the vapor with flavor for a gin, or spiced whiskey or more flavor in a brandy. Make infused vodkas. This still has total versatility.

53 Gallon Still Boiler has a 8″ Tri-clamp fitting on top with an 8″ to 4″ reducer, 6″ clean out on top, 2″ fill port on top, 1/2″ coupling on the side for a thermometer, two of the 2″ ports for heating elements and a drain that drains from center of the slight conical bottom ( see images of boiler upside down ).

All sections are made of stainless and each section comes apart for easy cleaning. Sight glass, dephlegmator, shotgun condenser and parrot are made of durable easy to clean stainless.

Suggested Heat Source;

220V Dual Temperature Controller with two 5500 watt heating elements.

Large Gas Burner

Dimensions:

overall height is 93″ tall

53 gallon boiler has a diameter of 26.5″
