Description

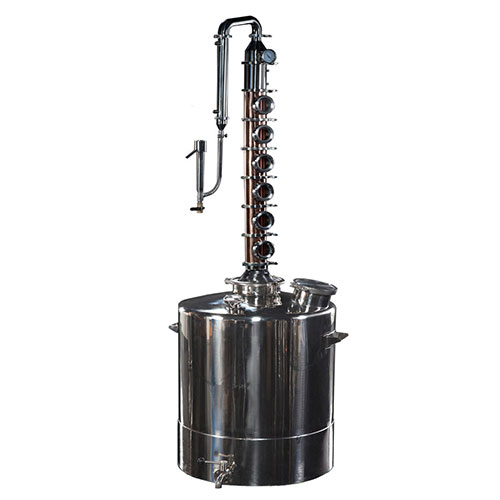

53 Gallon Copper 6 Inch Diameter Mile Hi Flute 6 Sections

Please note: This still has a lead time of 12-16 weeks

Please contact us directly at 303-987-3955 if shipping rates do not appear. These units will ship freight and additional shipping information is required from the recipient to calculate shipping. Please advise that additional rates may apply if shipping to residential addresses and locations where liftgate assistance is required.

53 Gallon Copper 6 Inch Diameter Mile Hi Flute 6 Sections Copper Alcohol Still with a large 6″ diameter stainless column and 3″ Sight glass allows you to see all the action. This column includes 6 copper sections with copper perforated plates and down comers. This completely modular still allows you to run 3,5,8 sections to give you as much or as little reflux as you desire. Complete with shotgun condenser and dephlegmator. With the built-in parrot, you can see real-time percentages and proof of the distillate.

This Section Design allows the distiller to remove copper plates and run as a pot still carry over flavor from the wash or stripping still Or add more sections with plates to get the highest percentage 190 proof pure spirit for vodkas. There is also can be run with a few plates for a clean rum at 150 proof. You can easily add a sight glass with a screened gasket to be used as a gin basket or infusion chamber. Infuse the vapor with Gin or use cinnamon sticks and spices for a spiced whisky. The beauty is it has versatility and is perfect for a distillery. These 6″ diameter towers will produce.

53 Gallon Still Boiler has an 8″ tri-clamp fitting with an 8″ to 6″ reducer, 6″ cleanout, 2″ fill port or agitator port, 1/2″ coupling on the side for a thermometer, two of the 2″ ports for heating elements, drain that drains from the slight conical bottom ( see images of boiler upside down showing conical bottom )

All sections are made of copper and each section comes apart for easy cleaning. Sight glass, dephlegmator, shotgun condenser and parrot are made of durable easy to clean stainless.

Suggested Heat Source;
220V Dual Temperature Controller with two 5500 watt heating elements
Large Gas Burner
Dimensions:
overall height is 105″ tall
53 gallon boiler has a diameter of 26.5″
