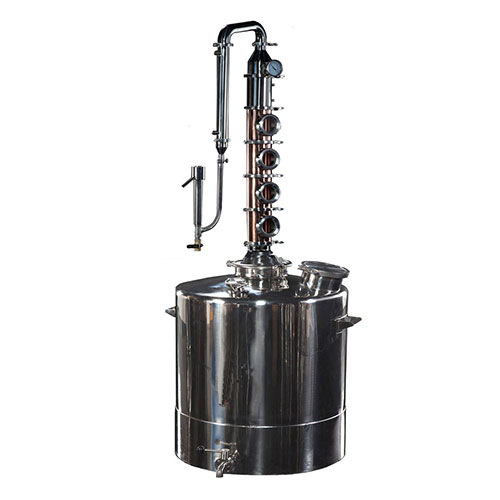

53 Gallon Copper 4 Inch Diameter Mile Hi Flute 4 Sections Commercial Distiller
Please note: This still has a lead time of 10-12 weeks
These units will ship freight. Please advise that additional rates may apply if shipping to residential addresses and locations where liftgate assistance is required.
53 Gallon Copper 4 Inch Diameter Mile Hi Flute 4 Sections Commercial Distiller with a 4″ diameter copper column and 3″ Sight glass allows you to see all the action. This column includes 4 copper sections with copper perforated plates and downcomers for each section. This completely modular still allows you to run 3,5,8 sections to give you as much or as little reflux as you desire. Complete with shotgun condenser, dephlegmator, and a parrot to see proof and percentage of alcohol real-time throughout the run.
The sectional design allows the distiller to remove copper plates and run as a stripping still or a pot still to carry over flavor. Or add all plates and more sections to run high percentage 190 proof for vodkas. You can easily add a 360 degree sight glass with screened gasket to be used as a gin basket or an infusion chamber. Infuse the vapor with flavor for a gin, or spiced whiskey or more flavor in a brandy. Make infused vodkas. This still has total versatility.
53 Gallon Still Boiler has a 8″ Tri-clamp fitting on top with an 8″ to 4″ reducer, 6″ cleanout on top, 2″ fill port on top, half-inch coupling on the side for a thermometer, two of the 2″ ports for heating elements and a drain that drains from center of the slight conical bottom ( see images of boiler upside down ).
All sections are made of copper and each section comes apart for easy cleaning. Sight glass, dephlegmator, shotgun condenser, and parrot are made of durable easy to clean stainless.
Suggested Heat Source;
220V Dual Variable Temperature Controller with two 5500 watt heating elements.
Large Gas Burner
overall height is 78″ tall
53-gallon boiler has a diameter of 26.5″
