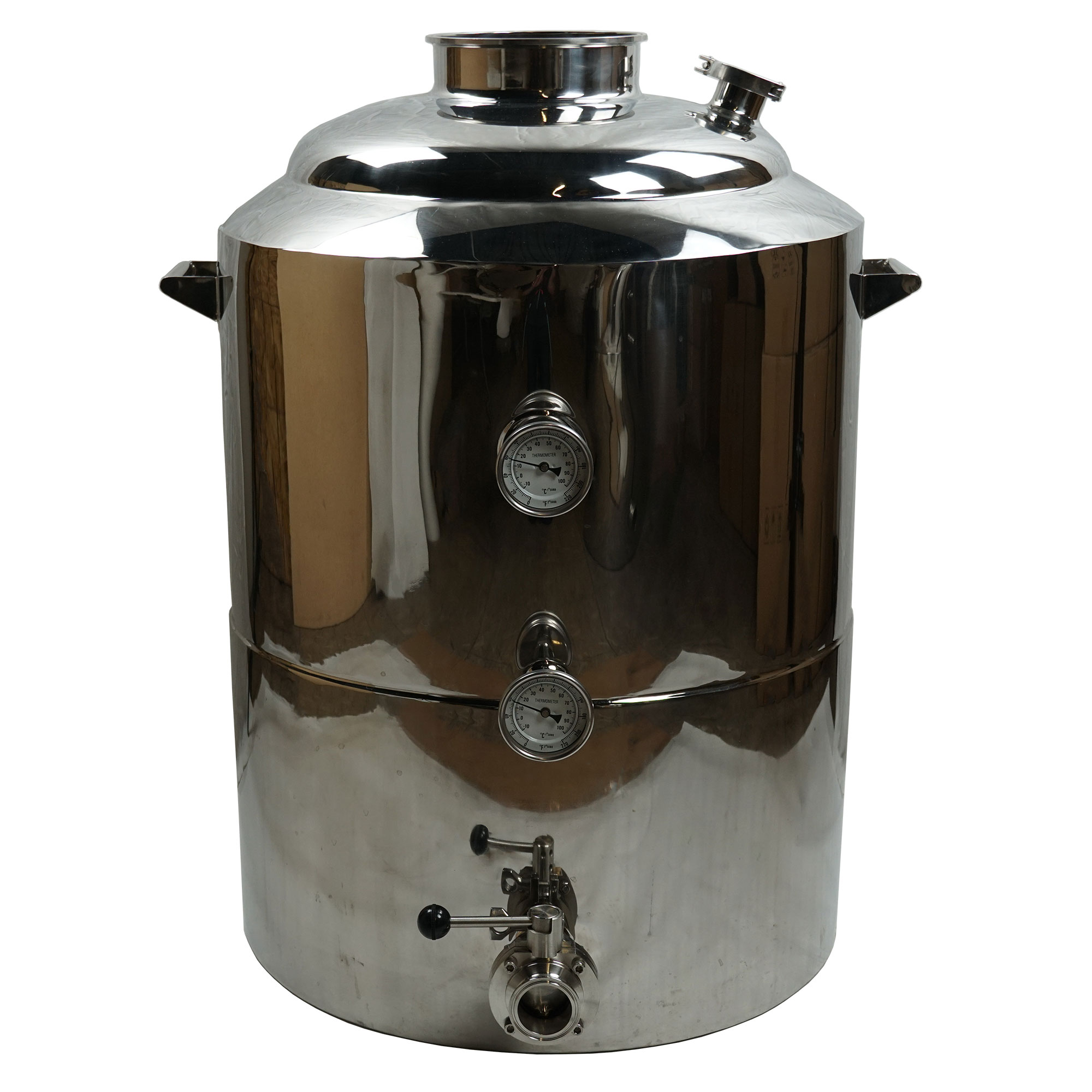

26 Gallon Stainless jacketed Kettle made of 304 stainless. See list of fittings below. A perfect solution to distill on the grain or with fruit or any solids in the kettle. The jacket creates an indirect heat so softer heat that wont burn or scorch the solids.
THIS BOILER MODEL IS ONLY DESIGNED FOR STEAM DISTILLATION. A STEAM GENERATOR WILL NEED BE SOURCED SEPARATELY.
Fittings on jacketed kettle include;
- 8” tri-clamp on top
- Two 2” tri-clamp ferrules for steam entry and drain
- One 2″ tri-clamp fitting for fill port or viewing window.
- 2” drain that drains from the center. This kettle has a slight conical bottom and drains from the center. 2″ tube drain with tri-clamp ferrule for drain out of main pot
- Two ½” female pipe couplings for thermometer probes. One for the jacket and one for inner pot.
- Two handles one on each side for moving and handling
- Thick stainless skirt so kettle sit directly on the floor
Does not include clamps, gaskets, end caps, safety valve, and threaded fittings. All loose fittings will need to be purchased separately.
Dimensions; Approximately 33” diameter and 40″ tall
Capacity is 26 gallons
Made with 304 stainless steel
Please allow up to 5 business days to ship. This boiler ships by freight truck.
Additional rates on shipping may apply for orders that require liftgate assistance and residential locations.
