New 16 gallon Flute Still
16 Gallon 4 Inch Diameter Mile Hi Flute Plug & Play Kit
$3,150.00
Description

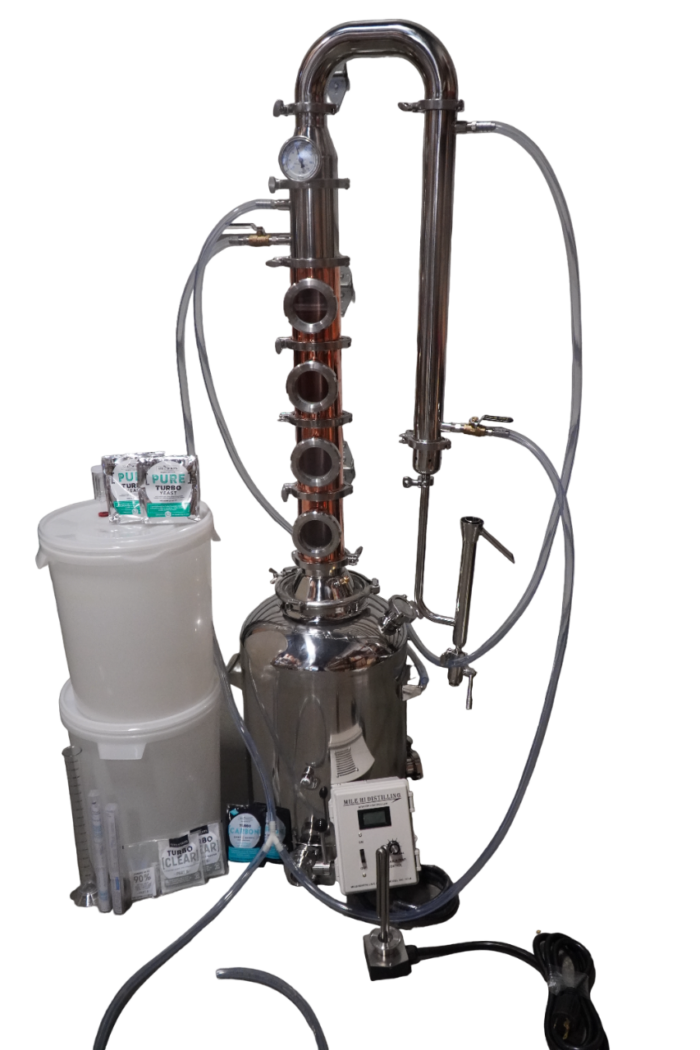

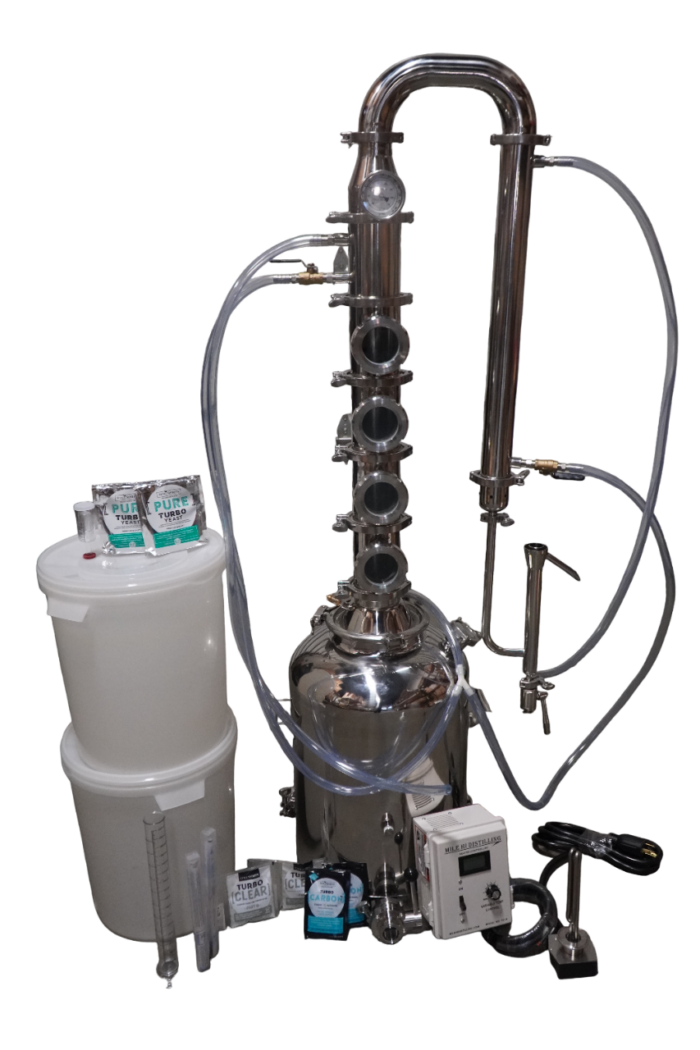

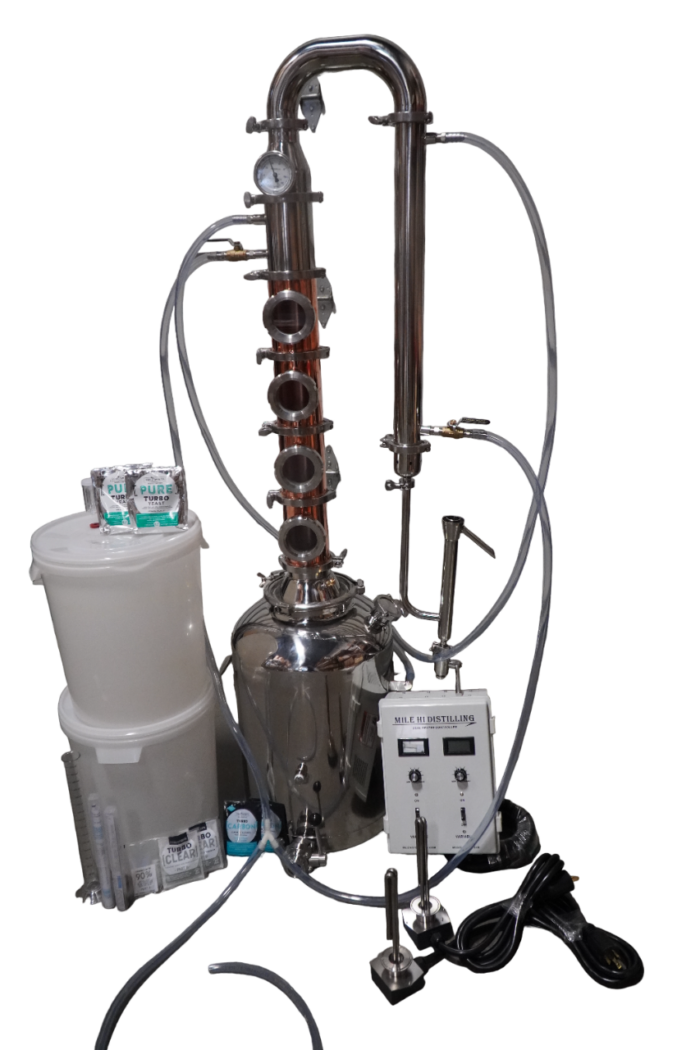

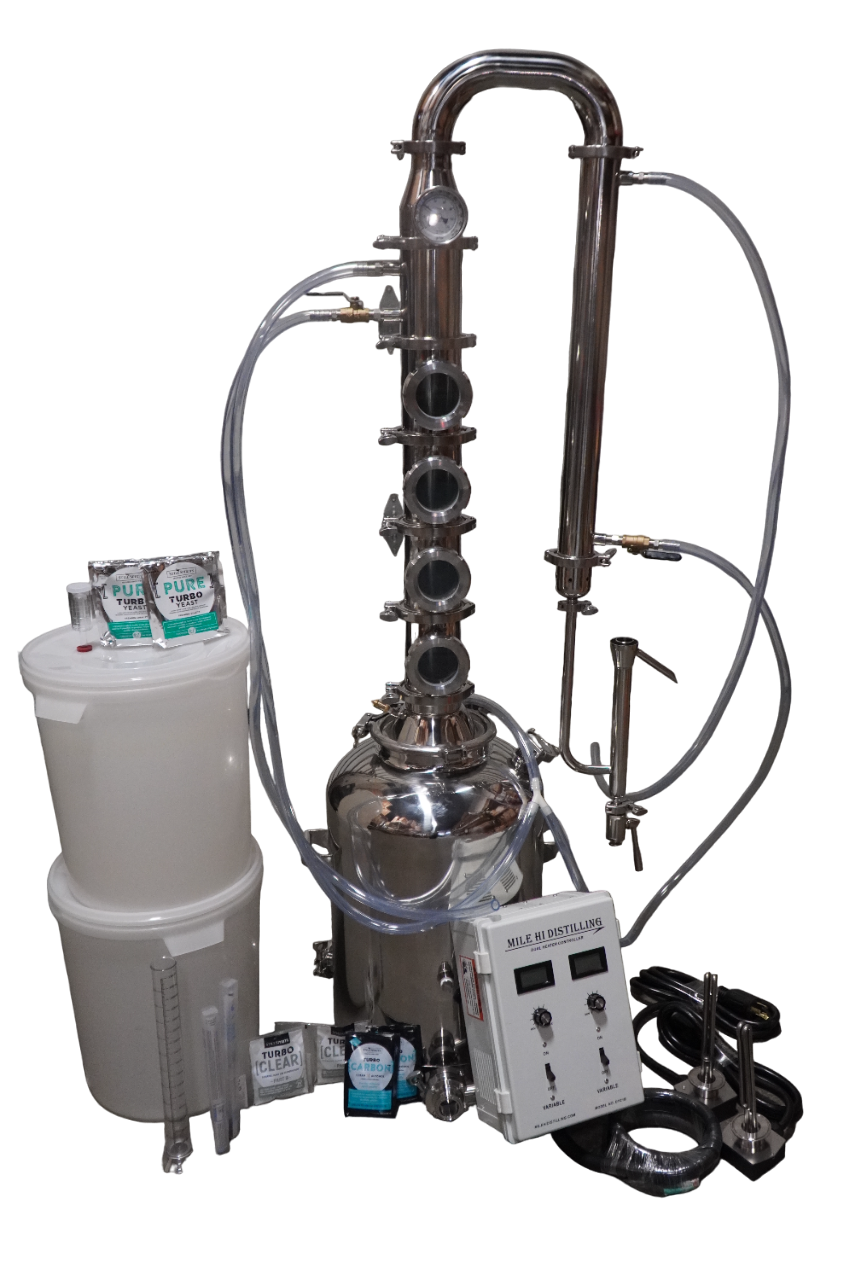

16 Gallon 4 Inch Diameter Mile Hi Flute Plug & Play Kit
This unit has a lead time of 2-4 weeks from date of order.
16 Gallon 4 Inch Diameter Mile Hi Flute Plug & Play Kit. This still has the versatility. The modular design will allow you to remove the copper downcomer plates and the reflux condenser ( dephleg ) to run the still like a pot still or stripping still. Add copper downcomer plates and reflux condenser to run as a reflux still for vodka and high percentage neutral spirits like moonshine. Add more sections with copper downcomer plates to get higher percentage up to 95% or 190 proof. You can add a 360 degree 4 inch sight glass with a screened gasket as a gin basket or an infusion chamber. This can easily clamp in on the tower usually at the top of the tower. Infuse the vapor with flavor for a gin, or spiced whiskey or more flavor in a brandy. You can even make infused vodkas.
16 Gallon Milk Can Boiler has a 8″ rolled top for easy access for cleaning, 2″ fill port on top, 1/2″ coupling on the side for a thermometer, two of the 2″ ports for heating elements and a drain. One 220V 5500 watt heating element will be sufficient but if you want to improve the initial heat up time then you have the option to add another heating element. There are two of the 2″ ports for heating elements on the Mile Hi Distilling 16 gallon boilers.
All of the sections are made of domestic metal and each section comes apart with clamps. As a result, this flute is very easy to clean. The Mile Hi Flute stills include windowed sections, dephlegmator, shotgun condenser and parrot.
Suggested Heat Source;
220V Single Element Controller with 5500 watt heating element or Dual Temperature Controller with two 5500 watt heating elements
Gas Burner
Check out our other Complete Flute Stills available at Mile Hi Distilling
International orders and orders to Hawaii, Alaska and Puerto Rico will be discounted shipping rates.
Dimensions:
overall height is 67″ – 91″ tall depending on number of sections
16 gallon boiler has a diameter of 16″
Kit Includes
* Hydrometer
* Alcohol Meter
* Test Jar
* Two Bags of Yeast
* Two Bags of Turbo Clear
* Two Bags of Turbo Carbon
* Airlock
* Two 8 Gallon Fermentation Buckets with lid
* Heating Unit
Additional information
Weight | 45 lbs |
---|---|
Dimensions | 22 × 22 × 30 in |
Reviews
There are no reviews yet
