16 Gallon Stainless 4 Inch Mile Hi Flute – 4 Sections


(5 customer reviews)

New 16 Gallon Flute Still

Safety Valve Upgrade


Please note: This still has a build lead time and will ship between 10-16 weeks from the date ordered.

16 Gallon Stainless 4 Inch Mile Hi Flute – 4 Sections Moonshine Distillers

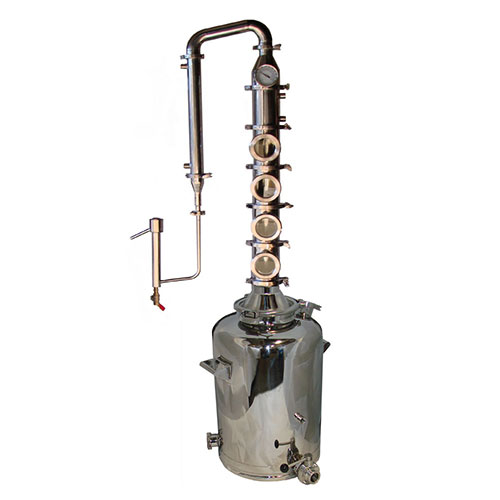

16 Gallon Stainless 4 Inch Mile Hi Flute – 4 Sections Moonshine Distillers have a 4″ diameter stainless column and 3″ Sight glass allows you to see all the action. This column includes 4 stainless sections with copper perforated plates and down comers for each section. This completely modular still allows you to run 4,6,8 sections to give you as much or as little reflux as you desire. Complete with shotgun condenser, dephlegmator, and a parrot to see proof and percentage of alcohol real time throughout the run.

Customizable Moonshine Distillers

The sectional design allows the distiller to remove copper plates and run as a stripping still or pot still to carry over flavor. Or add all plates and more sections to run high percentage 190 proof for vodkas. You can easily add a 360 degree sight glass with screened gasket to be used as a gin basket or an infusion chamber. Infuse the vapor with flavor for a gin, or spiced whiskey or more flavor in a brandy. Make infused vodkas. This still has total versatility.

16 Gallon Milk Can Boiler has a 8″ rolled top for easy cleaning.  2″ fill port on top, 1/2″ coupling on the side for a thermometer.  Two of the 2″ ports for heating elements and a drain. One 220V 5500 watt heating element will be sufficient but if you want to improve the initial heat up time then you have the option to add another heating element. There are two of the 2″ ports for heating elements on the Mile Hi Distilling 16 gallon boilers.

You can take apart each of the stainless steel sections with clamps, therefore this flute is very easy to clean.  The Mile Hi Flute Stills include four stainless windowed sections, dephlegmator, shotgun condenser, and parrot which are made of durable easy to clean stainless steel.

Suggested Heat Source:

220V Single Element Controller with 5500 watt heating element or Dual Temperature Controller with two 5500 watt heating elements

Gas Burner

International orders and orders to Hawaii, Alaska and Puerto Rico will be discounted shipping rates.


overall height is 67″ tall

16 gallon boiler has a diameter of 16″

Additional information

Weight 45 lbs
Dimensions 22 × 22 × 30 in

5 reviews for 16 Gallon Stainless 4 Inch Mile Hi Flute – 4 Sections

  1. Seth Thomas (verified owner)

  2. Andrew Barton (verified owner)

    The absolute best, coolest, water distiller I’ve ever used ! Attach an essential oil basket to this and you can make some really cool plant extracts.

  3. FlyingDutchman (verified owner)

    I don’t think you will find better craftsmanship anywhere and the beauty of it is that it’s made in the USA. The staff is extremely busy getting their orders made and shipped however they always have time to respond to you via email. Jayson has been nothing short of phenomenal with my order and my questions. Thank you Team Mile-Hi…

  4. Max (verified owner)

    After encouraging results using an air still for a month, I went all-in on a Mile High four section, 4″ stainless flute still and hose kit.  I elected to have the down-comer plate option, and added the pressure relief safety valve.  I am a total newb, have no “mentor”, and have learned everything online and from a couple of books.  I just ran my first sugar wash today (after vinegar cleaning), and produced an amazingly clean spirit.  The T-clamps and modular design make setup and cleanup easy.  The tig welds are beautiful (and I weld). The setup is beautiful to look at, as it is easy to operate.  It was well worth the price.  An example of the old saying: “You Get What You Pay For”.  Being a veteran, I am also glad to have bought an American made product.

  5. skinner71461 (verified owner)

    My wife asked what did I want for Christmas. I told her a reflux still! She said to order what I wanted. I choice this one.
    The ease of hand cleaning and assembly, the attention to detail and the craftsmanship that is in this still is letting me know I made the right choice.
    Had a few questions and Mi High helped answer with clarity.
    Best Christmas gift ever!
